Squeeze Dryer Integrated Recycling Machine

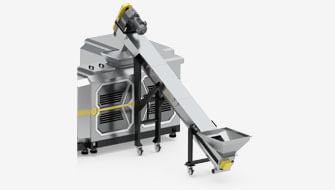

Screw Conveyor

The screw conveyor feeds washed films and soft materials into the pelletizing line, reducing labor. With an intelligent feeding control system, it detects the pelletizing line’s processing signal and automatically controls the feeding quantity. Prevents overload while keeping a stable feeding for the pelletizing line.

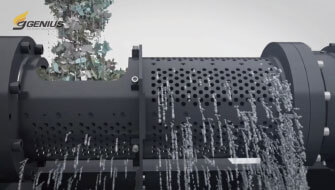

Squeeze Dryer

Main Extruder

The main extruder is used for melting a plastic polymer into molten form, degassing, ventilation, melting with minimum shearing impact, enhanced filter performance, greater homogenization efficiency.

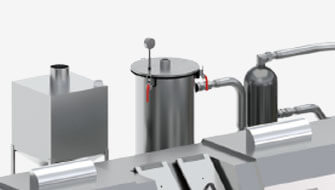

Vacuum Pump

Degassing Vent

The waste gas and moisture are released from the vent, it helps the main extruder to produce better homogenized polymer. An optional vacuum system is available.

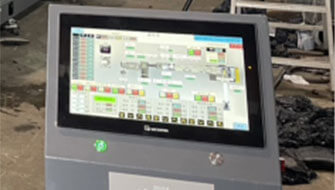

PLC System

Dual-Piston Filter

The dual-piston filter is made in a continuous style with two filter flows. There is at least one filter working when the screen is changing. The piston moves slowly when the mesh is changed. This allows the melted polymer to be filled in the filter area gradually to ensure low fluctuation of the extrusion pressure.

Die-Face Cutting

The molten polymer from the extruder is passed to the die head. A rotating blade cuts the hot material as it exits the die hole and falls into a water ring for cooling.
The pelletizing cutter is a universal joint design. The cutter adjusts the blade automatically during operation. Final plastic pellets are in uniform size in order to be sold at a higher price and bring you more profit.

Centrifugal Dryer

The pellets emerging from the pelletizer cutter are carried by the process water through piping to the inlet of the centrifugal dryer. The water is separated through the screens and the pellets are continuously conveyed into the upper section of the dryer where they are discharged from the resin outlet.

Vibrating Screener

The vibrating screener is enabled to select qualified size pellets and extrude out oversized, undersized pellets and dust.
